Creating Repeating Patterns From Custom Shapes In Photoshop

As we learned back at the beginning of this series, the first thing we need to do is design a single tile which will become our repeating pattern. For that, we need a new blank document, so go up to the File menu in the Menu Bar along the top of the screen and choose New:

Go to File > New.

The New Document dialog box.

Click OK when you're done to close out of the dialog box. The new blank document will appear on your screen. At only 100 pixels x 100 pixels, the document can be a bit small to work with, so I'll zoom in on it by holding down my Ctrlkey and my spacebar, which temporarily switches us to Photoshop's Zoom Tool (you'll see the mouse cursor change into a magnifying glass) and clicking a few times inside the document window. Here, I've zoomed in to 500%:

Step 2: Add Guides In The Center Of The Document

Next, we need to find the exact center of our document, and we can do that using Photoshop's guides. Back when we covered the basics of creating repeating patterns, we learned how we can add guides using the New Guide command. This time, we'll add guides using Photoshop's rulers. Either way of adding guides is fine so feel free to use whichever method you prefer. For this tutorial though, go up to the View menu at the top of the screen and choose Rulers:

Go to View > Rulers.

You'll see Photoshop's rulers appear along the top and left of the document. Click anywhere inside the left ruler and, with your mouse button held down, drag a vertical guide out into the center of the document. When you get close enough to the center, the guide will snap into place. Release your mouse button to place the guide:

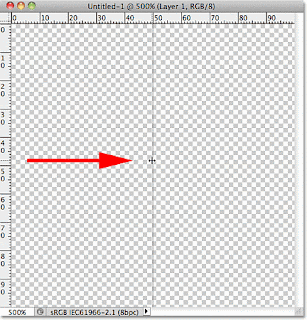

Click inside the left ruler and drag a guide into the vertical center of the document.

Next, click anywhere inside the top ruler and, again with your mouse button still held down, drag a horizontal guide down into the center of the document. When you're close enough to the center, the guide will snap into place. Release your mouse button to place the second guide:

Click inside the top ruler and drag a guide into the horizontal center of the document.

Once both guides have been added, you can turn the rulers off by going back up to the View menu and again choosing Rulers. Or, you can use the handy keyboard shortcut Ctrl+R to quickly turn the rulers on and off when needed. The spot where both guides intersect is the exact center of the document. In my screenshot here, the guides appear in red. If you've been following along from the first tutorial in the series, you'll know that's because I changed the color of my guides in Photoshop's Preferences, just to make them easier to see in the screenshots. The default guide color is cyan which is the color your guides will appear in if you haven't changed it in the Preferences:

Step 3: Select The Custom Shape Tool

Select the Custom Shape Tool from the Tools panel. By default, it's hiding behind the Rectangle Tool, so click on the Rectangle Tool and hold your mouse button down for a second or two until a fly-out menu appears, then select the Custom Shape Tool from the bottom of the list:

Click and hold on the Rectangle Tool, then select the Custom Shape Tool from the menu.

Step 4: Choose The "Fill Pixels" Option

Photoshop gives us three different ways that we can use its shape tools. We won't get into specifics about them here, but in general, we can use them to draw vector shapes, paths, or pixel-based shapes. Photoshop will only allow us to save our design as a pattern if it was made with pixels, so we first need to tell Photoshop that we want the shapes we're about to draw to be filled with pixels, and we do that in the Options Bar along the top of the screen. Near the far left of the Options Bar is a series of three icons. Each icon selects one of the three types of shapes we can draw. Click on the third icon (the one on the right) to choose the Fill pixels option:

Select the Fill pixels option by clicking on its icon in the Options Bar.

Step 5: Choose A Custom Shape

Now that we've told Photoshop to draw pixel-based shapes, we need to choose the shape we want to draw. Click on the shape preview thumbnail in the Options Bar:

Click on the shape preview thumbnail.

This opens the Shape Picker, which displays small thumbnails of all the shapes we currently have to choose from. To choose a shape, simply click on its thumbnail. I'll choose the Heart shape by clicking on it. Once you've chosen a shape, press Enter (Win) / Return (Mac) to close out of the Shape Picker:

Click on the Heart shape's thumbnail to select it.

Step 6: Draw The Shape In The Center Of The Document

We need to draw our shape in the center of the document, which is why we added guides to find the center for us. We want our shape to be black for now, so press the letter D on your keyboard to quickly reset Photoshop's Foreground and Background colors to their defaults if needed, which will set the Foreground color to black. You can see the current Foreground and Background colors by looking at their thumbnails near the bottom of the Tools panel:

The Foreground (top left) and Background (bottom right) color swatches in the Tools panel.

With the Foreground color set to black, position your mouse cursor directly over the center of the document so the cursor's target symbol lines up with the vertical and horizontal guides, then click and, with your mouse button held down, begin dragging out the shape. After you've started dragging, hold down Shift+Alt (Win) / Shift+Option (Mac) and keep them held down as you continue dragging out the shape. Holding the Shift key down will maintain the original aspect ratio of the shape so you don't end up making it taller and thinner or shorter and wider than it should be, while the Alt (Win) / Option (Mac) key tells Photoshop to draw the shape out from its center. When you're done, your document should look similar to this (my document is zoomed in to 500% which is why the edges of the shape look blocky):

Drag out the shape in the center of the document.

Step 7: Turn Off The Guides

Now that we've drawn our shape, the guides are no longer needed and are just getting in the way, so let's turn them off. Go up to the View menu at the top of the screen, choose Show, then choose Guides. You'll see a checkmark to the left of the word Guides which tells us they're currently turned on. Selecting them while they're on will turn them off:

Go to View > Show > Guides to turn the guides off.

Step 8: Duplicate The Layer

Let's make our design a bit more interesting before saving it as a pattern. Make a copy of the layer by going up to the Layer menu at the top of the screen, choosing New, then choosing Layer via Copy:

Go to Layer > New > Layer via Copy.

You could also use the keyboard shortcut Ctrl+J (Win) / Command+J (Mac) to quickly copy the layer. Either way tells Photoshop to make a copy of Layer 1, which it creatively names "Layer 1 copy", and place it above the original in the Layers panel:

Step 9: Apply The Offset Filter

Just as we did when we were learning the basics of creating repeating patterns, we'll use Photoshop's Offset filter to add a little more interest to our tile. Go up to the Filter menu at the top of the screen, choose Other, then choose Offset:

Go to Filter > Other > Offset.

This opens the Offset filter dialog box. We want to enter half the width of our document into the Horizontal value box and half the height of the document into the Vertical value box. Since our document is 100 pixels x 100 pixels, set both the Horizontal and Vertical options to 50 pixels. Then, make sure the Wrap Around option is selected at the bottom of the dialog box:

Click OK when you're done to close out of the dialog box. The Offset filter has essentially split the copy of the heart shape into four equal parts and placed them in each corner of the document. It may look strange at the moment, but it won't when we see the pattern repeating a bit later. The heart shape in the center of the document is the original shape we added back in Step 6:

Step 10: Save The Design As A Pattern

With the design of our tile completed, we're ready to save it as a pattern. Go up to the Edit menu at the top of the screen and choose Define Pattern:



Go to Edit > Define Pattern.

Photoshop will pop open the Pattern Name dialog box so we can give our new pattern a name. It's good practice to include the size of your tile in the name in case you end up designing several similar tiles, all at different sizes. I'll name my pattern "Hearts 100x100" since the dimensions of the tile are 100 px x 100 px. When you're done, click OK to close out of the dialog box. The pattern is now saved and ready for use:

 Step 11: Create A New Document

Let's create a new document to fill with our newly created pattern. As we did in Step 1, go up to the File menu and choose New. This time when the New Document dialog box appears, enter 1000 pixels for both the Width and Height of the document and change the Background Contents to White. Leave the Resolution value set to 72 pixels/inch. Click OK to close out of the dialog box. The new document, filled with white, will appear on your screen:

Creating a new document.

Step 12: Add A New Blank Layer

Rather than filling the Background layer with our pattern, which will limit what we can do with it later, we'll add the pattern on its own layer. Click on the New Layer icon at the bottom of the Layers panel:

Click on the New Layer icon.

Photoshop adds a new blank layer named "Layer 1" above the Background layer:

Photoshop places the new layer above the Background layer.

Step 13: Select The Paint Bucket Tool

In the previous tutorials in this series, we learned how we can fill a layer with a pattern using Photoshop's Fill command. This time, let's see how we can do the same thing using the Paint Bucket Tool, which also lets us fill a layer or selection with either a color or a pattern. You'll find the Paint Bucket Tool in the Tools panel. By default, it's hiding behind the Gradient Tool, so click on the Gradient Tool and hold your mouse button down until a fly-out menu appears, then choose the Paint Bucket Tool from the list:

Click and hold on the Gradient Tool, then select the Paint Bucket Tool from the list.

Step 14: Change The Source To Pattern

With the Paint Bucket Tool selected, go up to the Options Bar and set the Source for the Paint Bucket to Pattern (by default, it's set to Foreground):

Change the source from Foreground to Pattern.

Step 15: Select The Pattern

With Pattern selected, click on the pattern preview thumbnail in the Options Bar:

Click on the preview thumbnail to the right of the Source option in the Options Bar.

This opens Photoshop's Pattern Picker where we can choose the pattern we want to use. The pattern we just created will be the last one in the list. Click on its thumbnail to select it. Once you've selected the pattern, press Enter (Win) / Return  to close out of the Pattern Picker:

Choose the Hearts pattern by clicking on its thumbnail.

Step 16: Click Inside The Document To Add The Pattern

Make sure Layer 1 is selected in the Layers panel (selected layers are highlighted in blue), then with the pattern chosen in the Options Bar, simply click anywhere inside the document with the Paint Bucket Tool, which will instantly fill the document with the pattern. The tile repeats as many times as needed to fill the entire space:

Clicking anywhere inside the document fills Layer 1 with the pattern.

At the moment, our pattern is in black and white but we can easily colorize it. You'll find all steps needed for colorizing patterns in our previous Repeating Patterns - Adding Colors And Gradients tutorial so I won't bother repeating everything here, but here's a quick example of how the same pattern can look after colorizing both the white background and the pattern itself:
